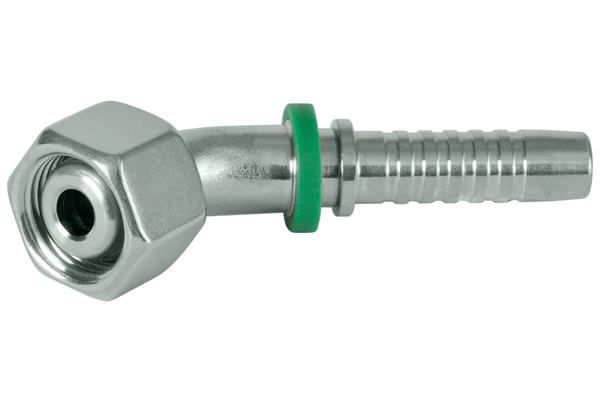

XV36MSF25-45S12
DKS 45° MSF 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Sealing cone with union nut heavy series

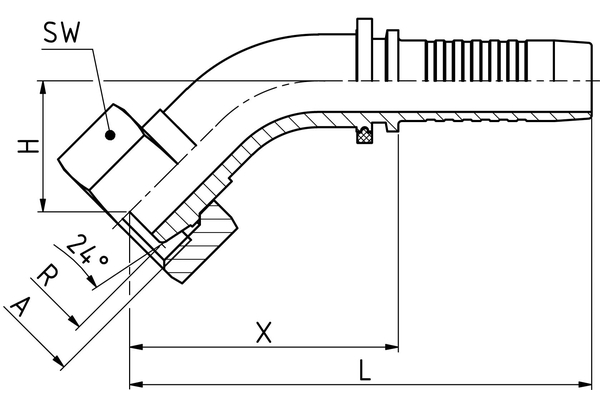

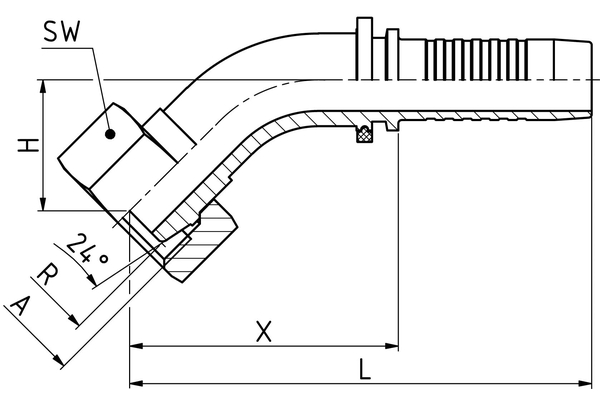

  Connection thread A:	M36x2,0
  Pipe Ø R [mm]:	25
  X [mm]:	74,0
  L1 [mm]:	120,0
  H [mm]:	30,4
  SW1 [mm]:	46
  Connection name Indunorm:	MSF 45°
  Connection type:	DKS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
