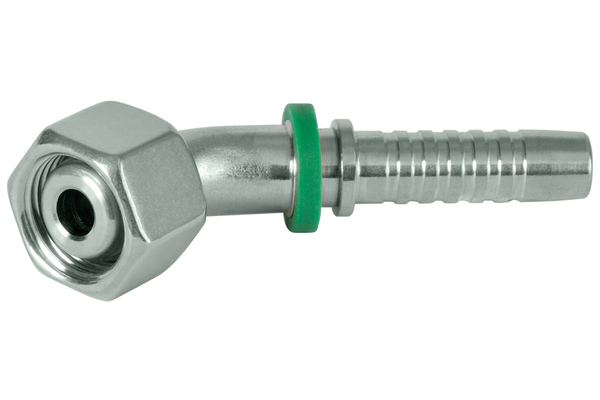

XV24MSF16-45S08
DKS 45° MSF 45°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M24x1,5
  Pipe Ø R [mm]:	16

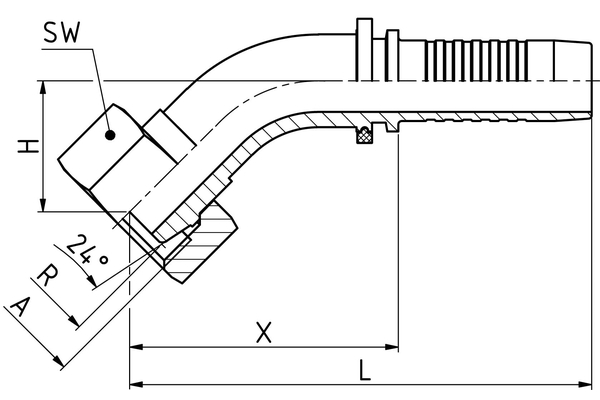

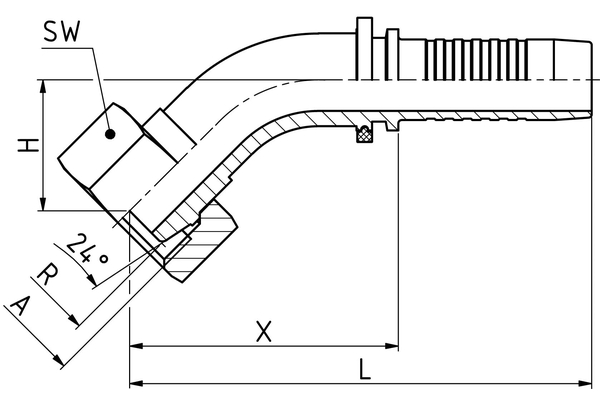

  X [mm]:	46,0
  L1 [mm]:	81,5
  H [mm]:	19,8
  SW1 [mm]:	30
  Connection name Indunorm:	MSF 45°
  Connection type:	DKS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
