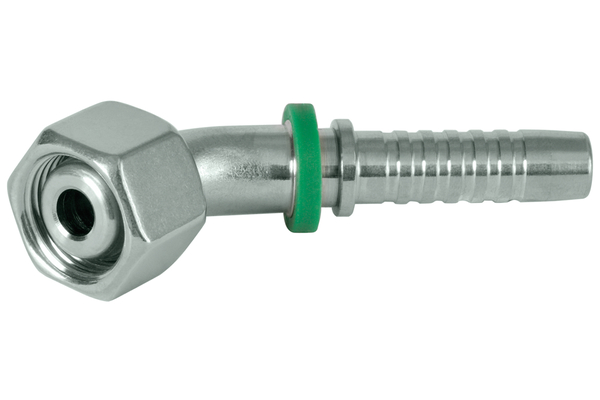

XV20MSF12-45S05
DKS 45° MSF 45°

Product info

• Technical data

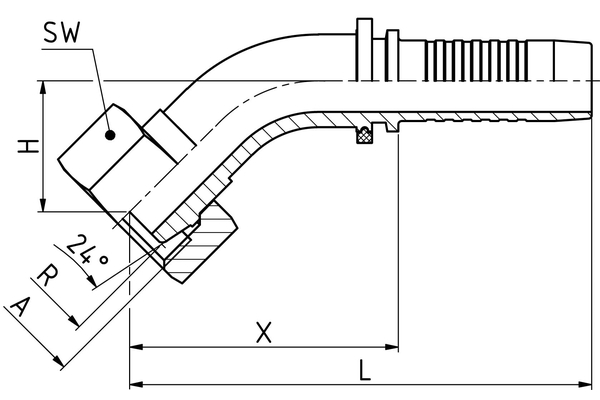

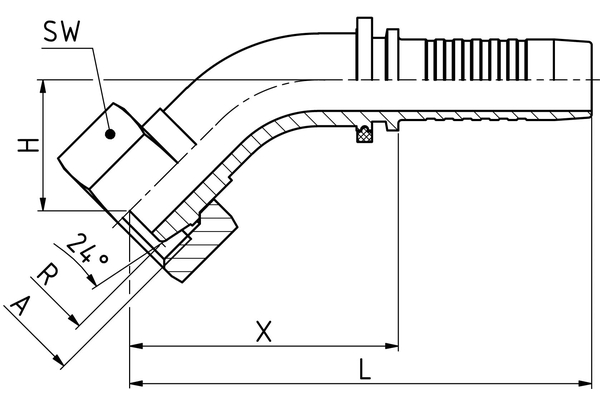

  DN:	08
  Size:	05
  Inch:	5/16
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M20x1,5
  Pipe Ø R [mm]:	12
  X [mm]:	43,3
  L1 [mm]:	73,5
  H [mm]:	17,5
  SW1 [mm]:	24
  Connection name Indunorm:	MSF 45°
  Connection type:	DKS 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
