XV20MSF12-90S06
DKS 90° MSF 90°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M20x1,5

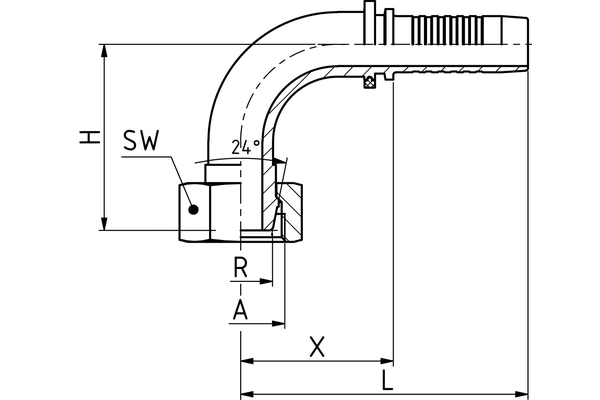

  Pipe Ø R [mm]:	12
  X [mm]:	34,8
  L1 [mm]:	65,0
  H [mm]:	37,0
  SW1 [mm]:	24
  Connection name Indunorm:	MSF 90°
  Connection type:	DKS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
  degree:	90
