DKS 90°

Similar image
Similar image

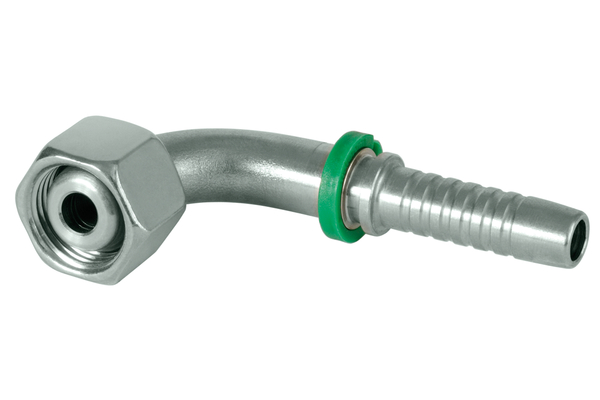

Sealing cone with union nut, heavy series

To accessories

Detail

Art. No.
XV16MSF08-90S04
%
SALE
XV20MSF12-90S06
%
SALE
XV24MSF16-90S08
%
SALE
XV42MSF30-90S16
%
SALE
DN
06
10
12
25
Size
04
06
08
16
Inch
1/4
3/8
1/2
1
Thread + standard
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series

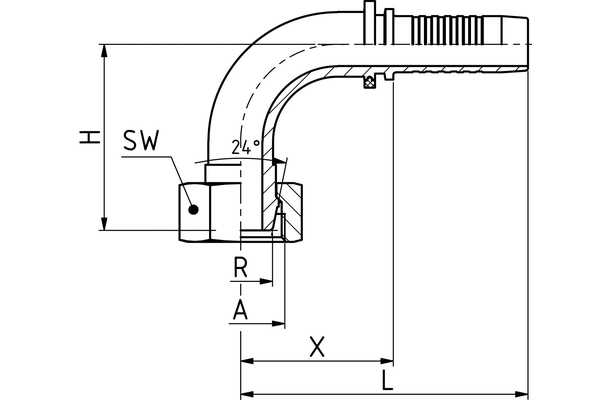

Connection thread A
M16x1,5
M20x1,5
M24x1,5
M42x2,0
Pipe Ø R [mm]
8
12
16
30
X [mm]
32,8
34,8
40,5
61,4
L1 [mm]
63,0
65,0
75,8
116,6
H [mm]
37,7
37,0
47,0
71,6
SW1 [mm]
19
24
30
50
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSF 90°
    Connection type: DKS 90°
    Construction form: 90°
    Material: Free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV

Benefit

Well-suited for high temperatures and for corrosive media duet to metallic sealing.
