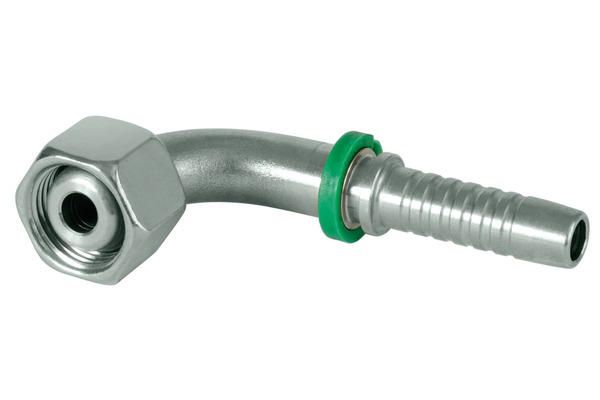

XV24MSF16-90S08
DKS 90° MSF 90°

Product info

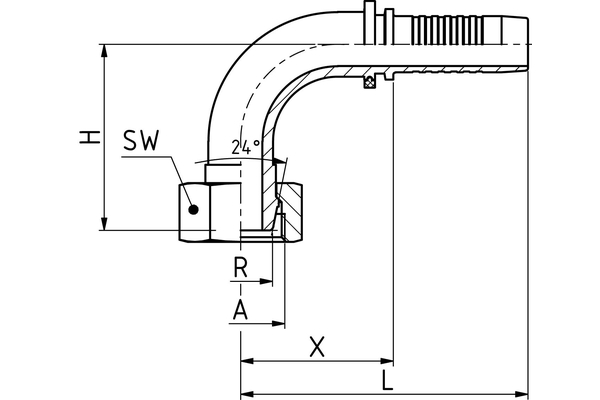

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M24x1,5
  Pipe Ø R [mm]:	16
  X [mm]:	40,5
  L1 [mm]:	75,8
  H [mm]:	47,0
  SW1 [mm]:	30
  Connection name Indunorm:	MSF 90°
  Connection type:	DKS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
