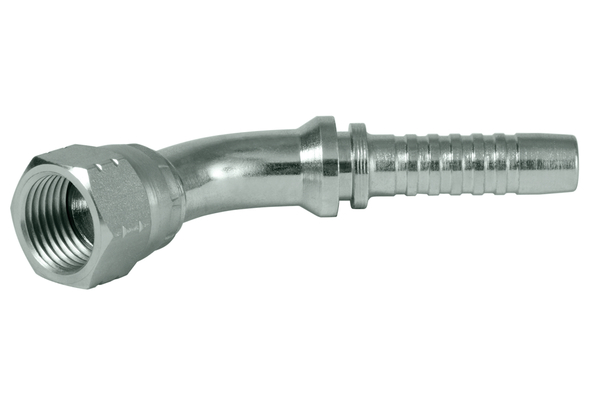

XV14MJF45S04
Komatsu 45° with metric union nut

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Komatsu-sealing head, 60 ° cone with union nut, metric thread
  Connection thread A:	M14x1,5

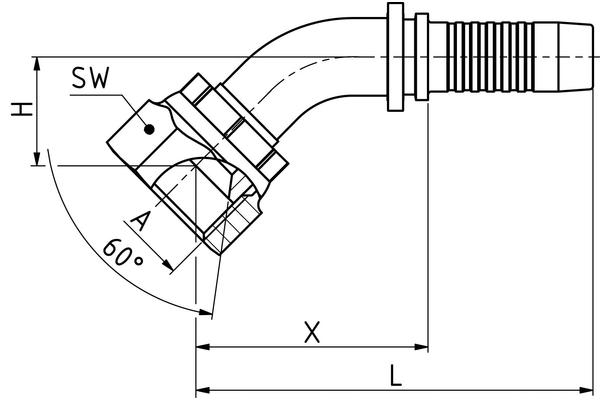

  X [mm]:	44,6
  L1 [mm]:	74,8
  H [mm]:	20,6
  SW1 [mm]:	19
  Connection name Indunorm:	MJF 45°
  Connection type:	Komatsu 45° with BSP-male thread
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
