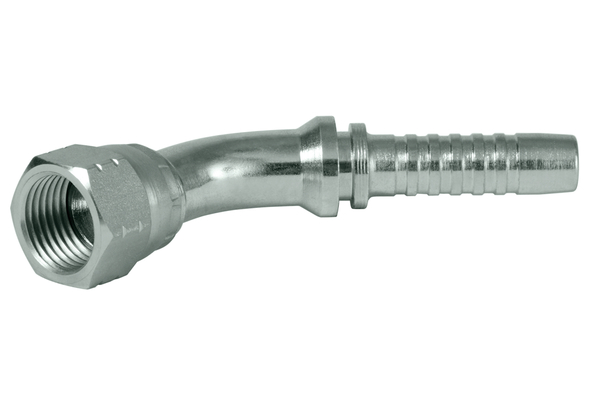

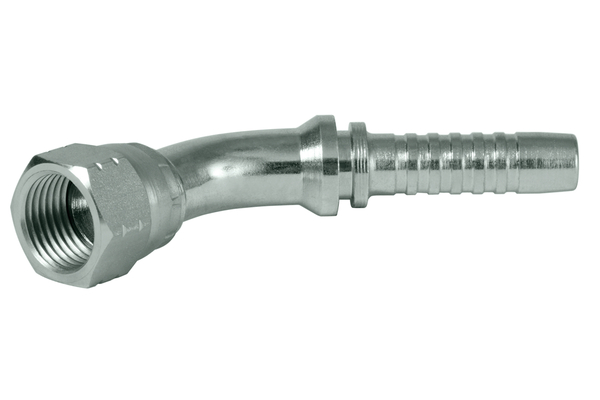

JIS - Komatsu - with metric swivel nut 45°

Similar image
Similar image

Komatsu-sealing head, 60 ° cone with union nut, metric thread

To accessories

Detail

Art. No.
XV14MJF45S04
%
SALE
XV14MJF45S06
%
SALE
XV16MJF45S06
%
SALE
XV18MJF45S06
%
SALE
XV22MJF45S08
%
SALE
XV24MJF45S10
%
SALE
XV30MJF45S12
%
SALE
DN
06
10
10
10
12
16
19
Size
04
06
06
06
08
10
12
Inch
1/4
3/8
3/8
3/8
1/2
5/8
3/4
Thread + standard
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread

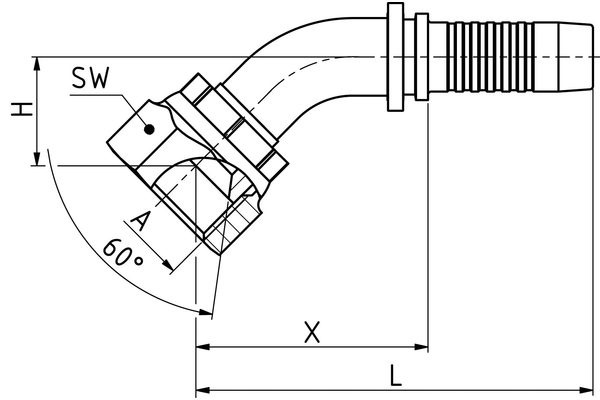

Connection thread A
M14x1,5
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M24x1,5
M30x1,5
X [mm]
44,6
46,2
44,8
45,7
57,3
54,4
64,1
L1 [mm]
74,8
79,7
78,3
79,2
85,5
92,9
110,1
H [mm]
20,6
20,5
20,5
21,4
24,5
25,2
31,0
SW1 [mm]
19
19
19
22
27
30
36
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MJF 45°
    Connection type: Komatsu 45° with BSP-male thread
    Construction form: 45°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
