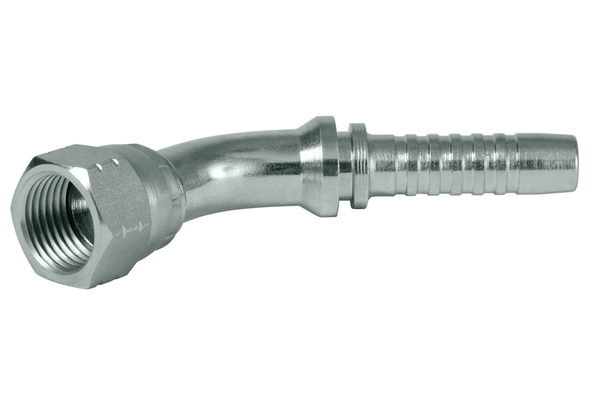

XV24MJF45S10
Komatsu 45° with metric union nut

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	Komatsu-sealing head, 60 ° cone with union nut, metric thread
  Connection thread A:	M24x1,5

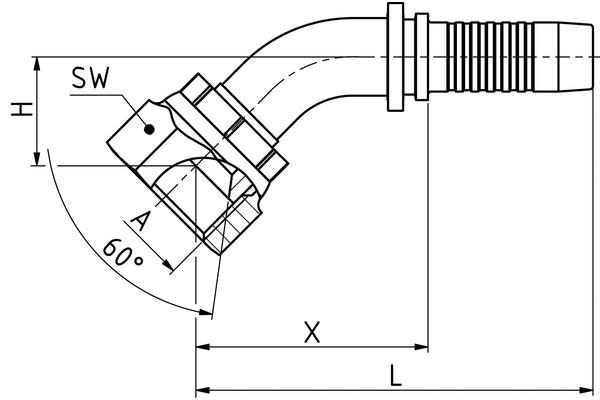

  X [mm]:	54,4
  L1 [mm]:	92,9
  H [mm]:	25,2
  SW1 [mm]:	30
  Connection name Indunorm:	MJF 45°
  Connection type:	Komatsu 45° with BSP-male thread
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
