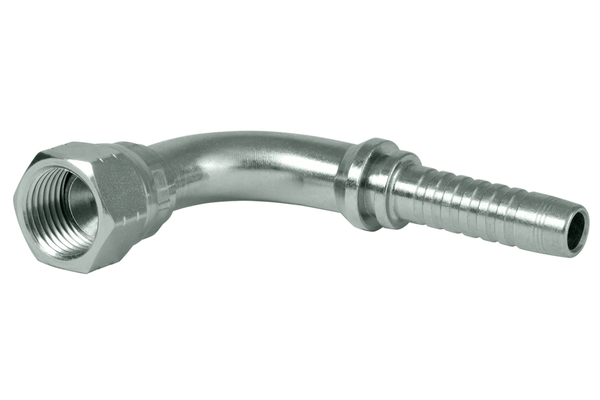

XV18MJF90S06
Komatsu 90° with metric union nut

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Komatsu-sealing head, 60 ° cone with union nut, metric thread
  Connection thread A:	M18x1,5

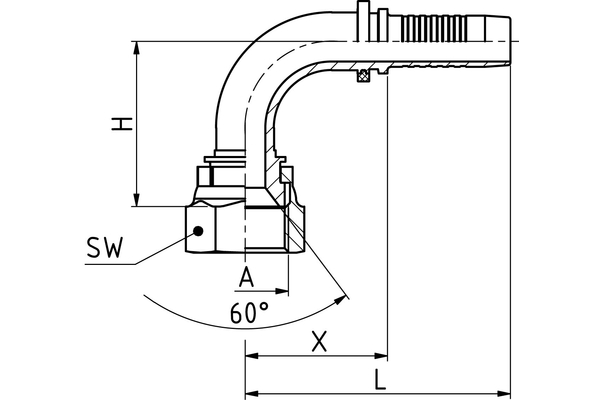

  X [mm]:	38,7
  L1 [mm]:	72,6
  H [mm]:	37,4
  SW1 [mm]:	22
  Connection name Indunorm:	MJF 90°
  Connection type:	Komatsu 90° with metric union nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
