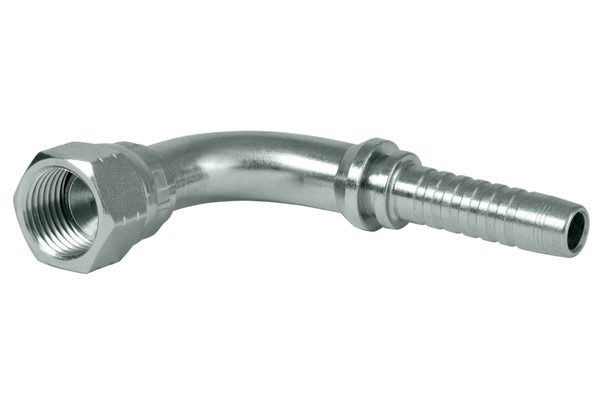

JIS - Komatsu - with metric swivel nut 90°

Similar image
Similar image

Komatsu-sealing head, 60 ° cone with union nut, metric thread

To accessories

Detail

Art. No.
XV14MJF90S04
%
SALE
XV14MJF90S06
%
SALE
XV16MJF90S06
%
SALE
XV18MJF90S06
%
SALE
XV20MJF90S06
%
SALE
XV22MJF90S06
%
SALE
XV22MJF90S08
%
SALE
XV24MJF90S10
%
SALE
XV30MJF90S12
%
SALE
XV33MJF90S16
%
SALE
DN
06
10
10
10
10
10
12
16
19
25
Size
04
06
06
06
06
06
08
10
12
16
Inch
1/4
3/8
3/8
3/8
3/8
3/8
1/2
5/8
3/4
1
Thread + standard
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread
Komatsu-sealing head, 60 ° cone with union nut, metric thread

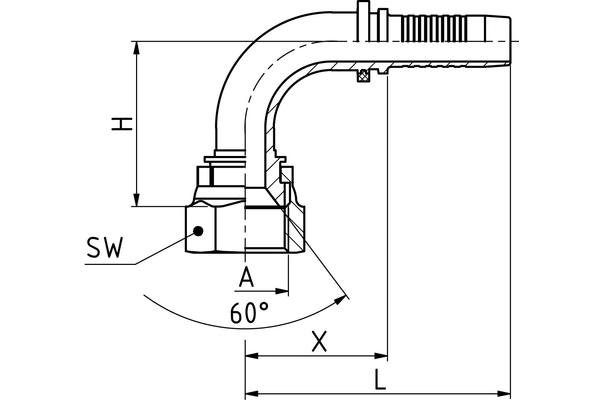

Connection thread A
M14x1,5
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M22x1,5
M22x1,5
M24x1,5
M30x1,5
M33x1,5
X [mm]
32,8
37,0
36,0
38,7
36,0
36,0
47,7
45,0
52,8
61,4
L1 [mm]
63,0
70,5
69,5
72,6
69,5
69,5
82,5
83,5
98,8
116,6
H [mm]
37,9
41,4
40,8
37,4
43,0
46,8
43,2
54,2
62,6
71,3
SW1 [mm]
19
19
19
22
24
27
27
30
36
41
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MJF 90°
    Connection type: Komatsu 90° with metric union nut
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: Cr3
    Type of fittings: Universal series XV
