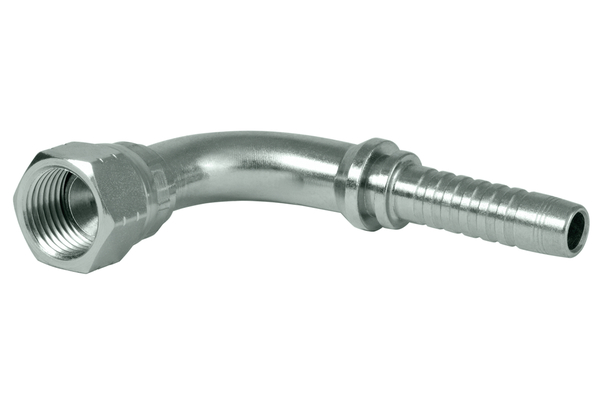

XV30MJF90S12
Komatsu 90° with metric union nut

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Komatsu-sealing head, 60 ° cone with union nut, metric thread
  Connection thread A:	M30x1,5

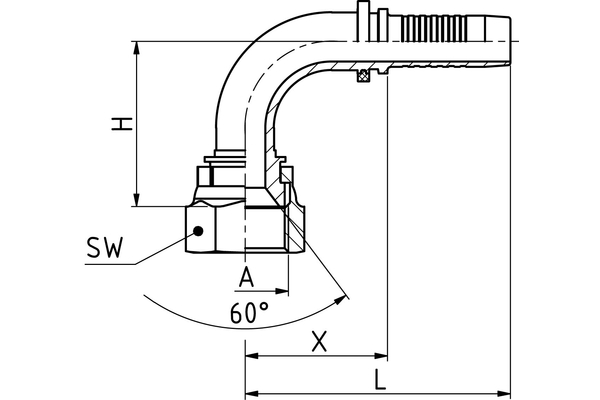

  X [mm]:	52,8
  L1 [mm]:	98,8
  H [mm]:	62,6
  SW1 [mm]:	36
  Connection name Indunorm:	MJF 90°
  Connection type:	Komatsu 90° with metric union nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
