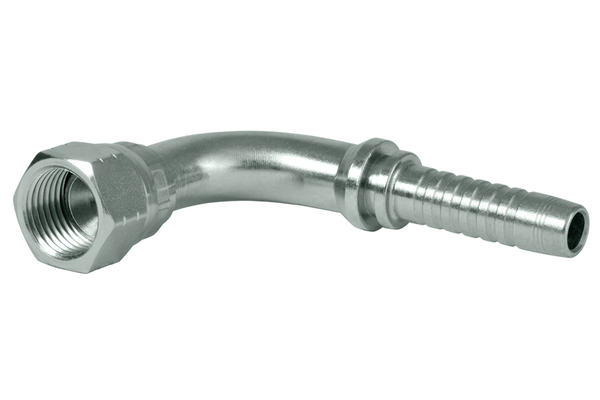

XV22MJF90S08
Komatsu 90° with metric union nut

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Komatsu-sealing head, 60 ° cone with union nut, metric thread

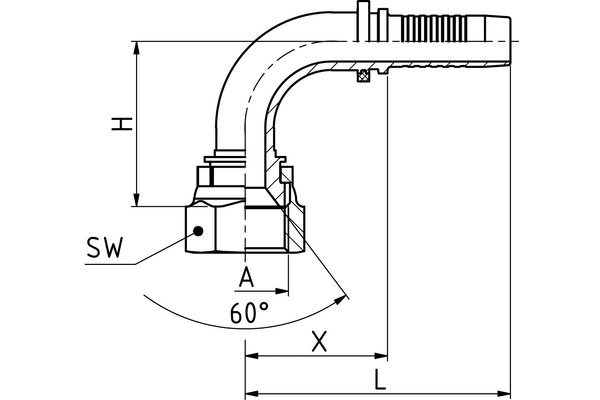

  Connection thread A:	M22x1,5
  X [mm]:	47,7
  L1 [mm]:	82,5
  H [mm]:	43,2
  SW1 [mm]:	27
  Connection name Indunorm:	MJF 90°
  Connection type:	Komatsu 90° with metric union nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
