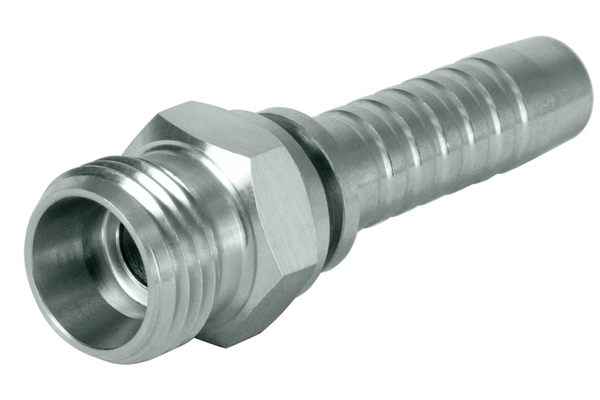

XV12ME06-03
CEL ME

Product info

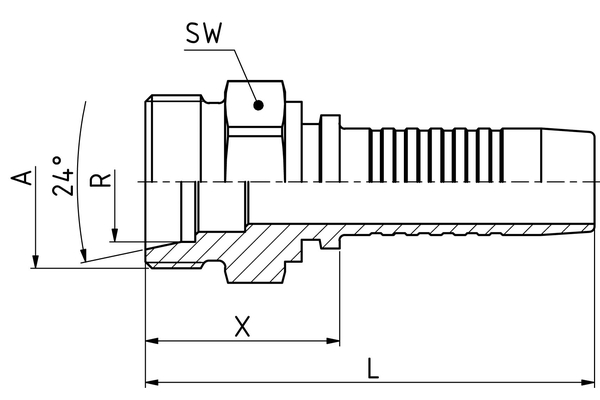

• Technical data

  DN:	05
  Size:	03
  Inch:	3/16
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series
  Connection thread A:	M12x1,5
  X [mm]:	20,7
  L1 [mm]:	43,7
  SW1 [mm]:	14
  L [mm]:	47
  Connection name Indunorm:	ME
  Connection type:	CEL
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	350
  Resistance against white rust [h]:	100
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
