CEL

Similar image
Similar image

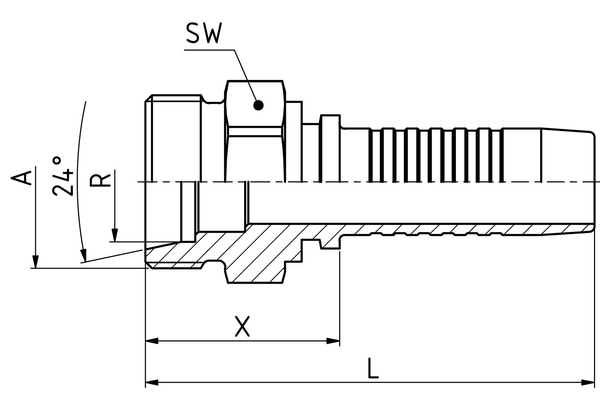

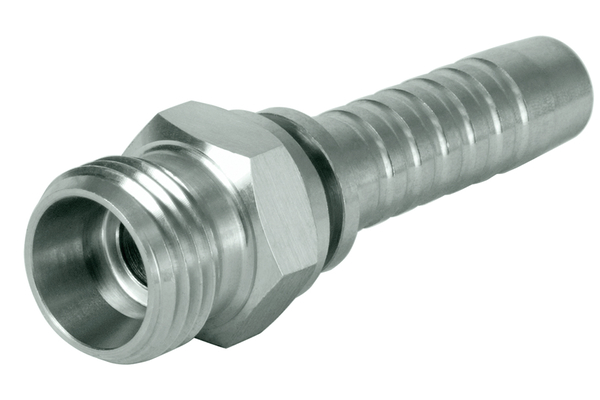

Threaded stem with bore form W (24 °) according to DIN 3861, light series

To accessories

Detail

Art. No.
XV12ME06-03
%
SALE
XV12ME06-04
%
SALE
XV14ME08-04
%
SALE
XV16ME10-04
%
SALE
XV18ME12-04
%
SALE
XV16ME10-05
%
SALE
XV18ME12-05
%
SALE
XV22ME15-05
%
SALE
XV16ME10-06
%
SALE
XV18ME12-06
%
SALE
XV22ME15-06
%
SALE
XV18ME12-08
%
SALE
XV22ME15-08
%
SALE
XV26ME18-08
%
SALE
XV26ME18-10
%
SALE
XV30ME22-12
%
SALE
XV36ME28-16
%
SALE
XV45ME35-20
%
SALE
XV52ME42-24
%
SALE
DN
05
06
06
06
06
08
08
08
10
10
10
12
12
12
16
19
25
31
38
Size
03
04
04
04
04
05
05
05
06
06
06
08
08
08
10
12
16
20
24
Inch
3/16
1/4
1/4
1/4
1/4
5/16
5/16
5/16
3/8
3/8
3/8
1/2
1/2
1/2
5/8
3/4
1
1.1/4
1.1/2
Thread + standard
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Connection thread A
M12x1,5
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M16x1,5
M18x1,5
M22x1,5
M16x1,5
M18x1,5
M22x1,5
M18x1,5
M22x1,5
M26x1,5
M26x1,5
M30x2
M36x2
M45x2
M52x2
Pipe Ø R [mm]
6
8
10
12
10
12
15
10
12
15
12
15
18
18
22
28
35
42
X [mm]
20,7
20,9
21,9
22,9
23,9
22,9
23,9
24,9
24,5
25,5
27,5
25,1
26,1
27,1
29,0
30,1
32,1
36,5
42,5
L1 [mm]
43,7
47,4
48,4
49,4
50,4
49,4
50,4
51,4
58,0
59,0
61,0
57,6
58,6
59,6
67,6
74,4
86,4
94,4
110,0
SW1 [mm]
14
14
14
17
19
17
19
22
17
19
22
19
22
27
27
30
36
46
55
L [mm]
47
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: ME
    Connection type: CEL
    Construction form: 0°
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Universal series XV

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
