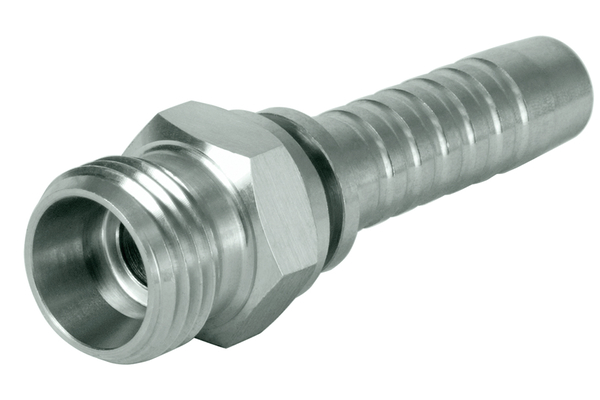

XV18ME12-05
CEL ME

Product info

• Technical data

  DN:	08
  Size:	05
  Inch:	5/16

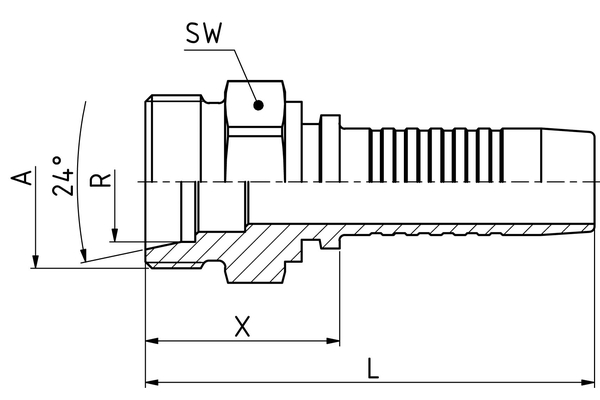

  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series
  Connection thread A:	M18x1,5
  Pipe Ø R [mm]:	12
  X [mm]:	23,9
  L1 [mm]:	50,4
  SW1 [mm]:	19
  Connection name Indunorm:	ME
  Connection type:	CEL
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	350
  Resistance against white rust [h]:	100
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
