XV30ME22-12
CEL ME

Product info

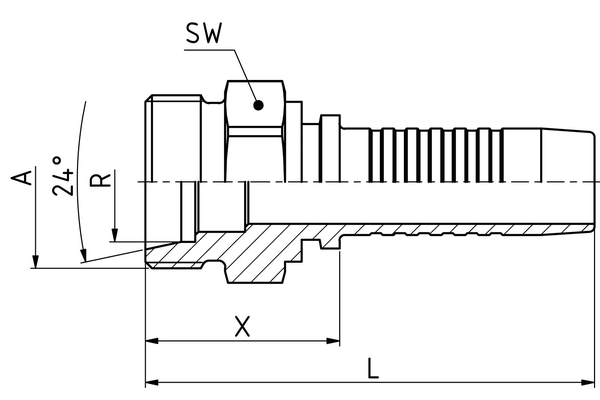

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series
  Connection thread A:	M30x2
  Pipe Ø R [mm]:	22
  X [mm]:	30,1
  L1 [mm]:	74,4
  SW1 [mm]:	30
  Connection name Indunorm:	ME
  Connection type:	CEL
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	350
  Resistance against white rust [h]:	100
  Surface:	Cr3
  Type of fittings:	Universal series XV
