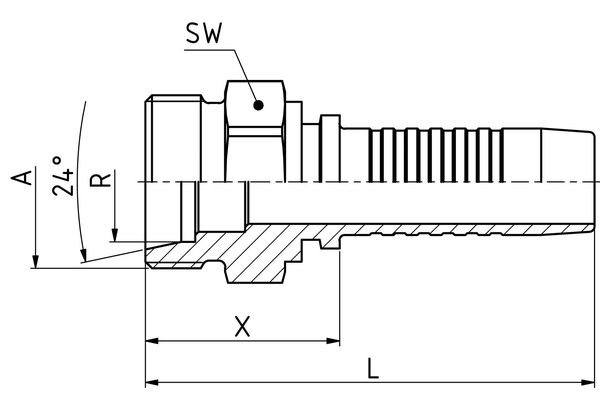

XV45ME35-20
CEL ME

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series
  Connection thread A:	M45x2
  Pipe Ø R [mm]:	35
  X [mm]:	36,5
  L1 [mm]:	94,4
  SW1 [mm]:	46
  Connection name Indunorm:	ME
  Connection type:	CEL
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	350
  Resistance against white rust [h]:	100
  Surface:	Cr3
  Type of fittings:	Universal series XV
