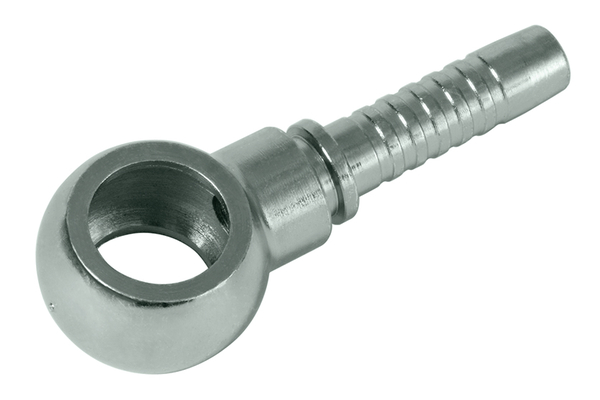

RGN - Ring nipple - for metric banjo bolts

Similar image
Similar image

Ring nipple according to DIN 7642 for metric banjo bolts

To accessories

Detail

Art. No.
XV10MRN04
%
SALE
XV12MRN04
%
SALE
XV14MRN04
%
SALE
XV16MRN04
%
SALE
XV12MRN05
%
SALE
XV14MRN05
%
SALE
XV16MRN05
%
SALE
XV14MRN06
%
SALE
XV16MRN06
%
SALE
XV18MRN06
%
SALE
XV16MRN08
%
SALE
XV18MRN08
%
SALE
XV22MRN08
%
SALE
XV18MRN10
%
SALE
XV22MRN10
%
SALE
XV26MRN12
%
SALE
DN
06
06
06
06
08
08
08
10
10
10
12
12
12
16
16
19
Size
04
04
04
04
05
05
05
06
06
06
08
08
08
10
10
12
Inch
1/4
1/4
1/4
1/4
5/16
5/16
5/16
3/8
3/8
3/8
1/2
1/2
1/2
5/8
5/8
3/4
Thread + standard
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts
Ring nipple according to DIN 7642 for metric banjo bolts

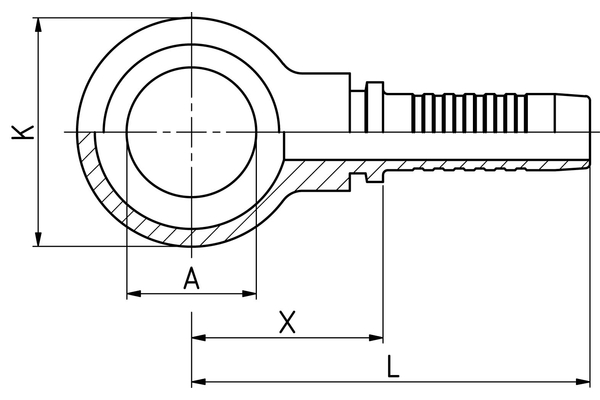

X [mm]
24,8
28,3
24,8
26,7
28,1
23,3
26,8
25,4
26,9
32,3
34,0
29,3
28,3
32,0
30,5
38,0
L1 [mm]
51,3
54,8
51,3
53,2
54,6
49,8
53,3
55,9
57,4
62,8
66,5
61,8
60,8
70,5
70,5
82,3
Ringnipple bore hole [mm]
M10
M12
M14
M16
M12
M14
M16
M14
M16
M18
M16
M18
M22
M18
M22
M26
L1 [mm]
53,2
OD Banjo Fitting K
17,0
20,0
24,0
28,0
20,0
24,0
28,0
24,0
28,0
32,0
28,0
32,0
39,0
32,0
39,0
46,0
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MRN
    Connection type: RGN
    Construction form: 0°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
