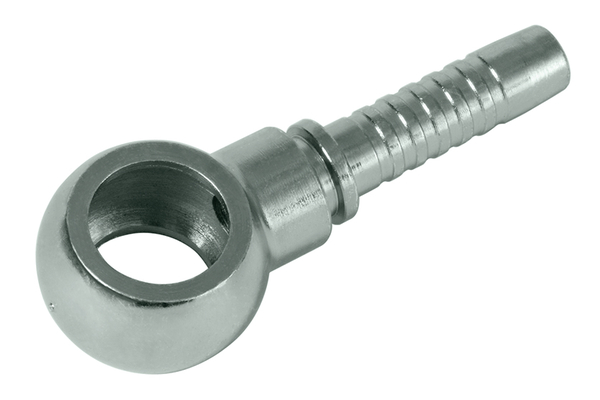

XV14MRN06
RGN MRN

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Ring nipple according to DIN 7642 for metric banjo bolts

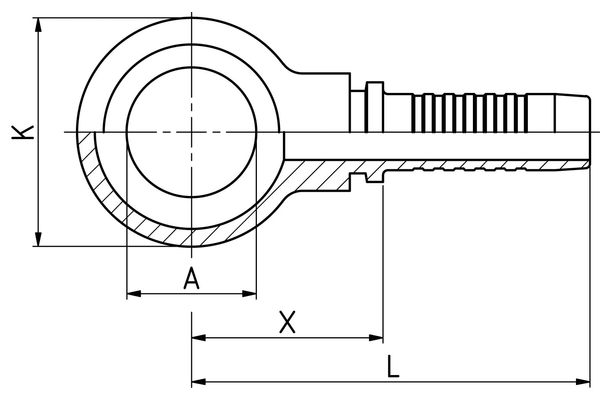

  X [mm]:	25,4
  L1 [mm]:	55,9
  Ringnipple bore hole [mm]:	M14
  OD Banjo Fitting K:	24,0
  A:	14,1
  Connection name Indunorm:	MRN
  Connection type:	RGN
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
