BEL/RSL - Pipe socket 90°

Similar image
Similar image

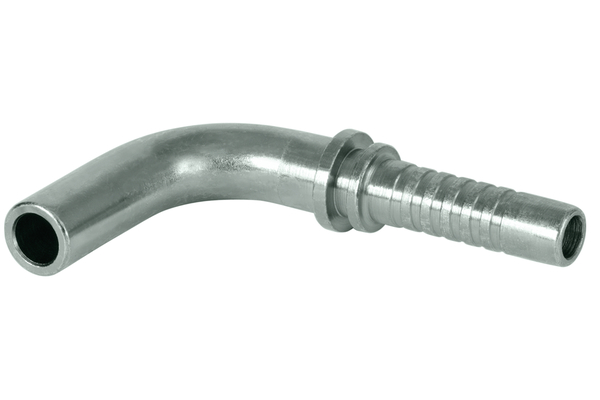

Pipe socket according to DIN 2353 for cutting ring and union nut, light series

To accessories

Detail

Art. No.
XV06MOSE90S03
%
SALE
XV06MOSE90S04
%
SALE
XV08MOSE90S04
%
SALE
XV10MOSE90S05
%
SALE
XV12MOSE90S06
%
SALE
XV12MOSE90S08
%
SALE
XV15MOSE90S08
%
SALE
XV18MOSE90S10
%
SALE
XV22MOSE90S12
%
SALE
DN
05
06
06
08
10
12
12
16
19
Size
03
04
04
05
06
08
08
10
12
Inch
3/16
1/4
1/4
5/16
3/8
1/2
1/2
5/8
3/4
Thread + standard
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe socket according to DIN 2353 for cutting ring and union nut, light series
Pipe Ø R [mm]
6
6
8
10
12
12
15
18
22
X [mm]
31,0
33,5
26,5
31,5
33,0
46,5
41,0
44,0
63,0
L1 [mm]
56,0
63,5
56,5
61,5
66,5
82,0
76,5
82,5
109,0
H [mm]
34,0
34,0
31,0
37,5
43,5
41,0
49,0
55,5
61,0
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MOSE 90°
    Connection type: BEL 90° RSL
    Construction form: 90°
    Material: Free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
