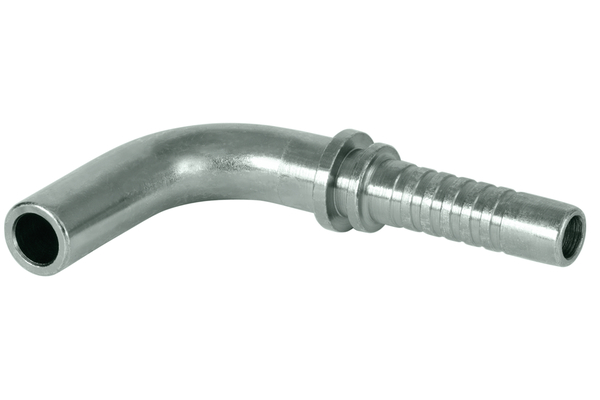

XV18MOSE90S10
BEL 90° MOSE 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, light series

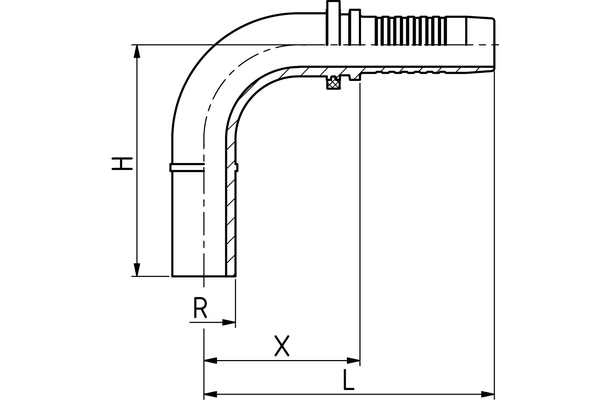

  Pipe Ø R [mm]:	18
  X [mm]:	44,0
  L1 [mm]:	82,5
  H [mm]:	55,5
  Connection name Indunorm:	MOSE 90°
  Connection type:	BEL 90° RSL
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
