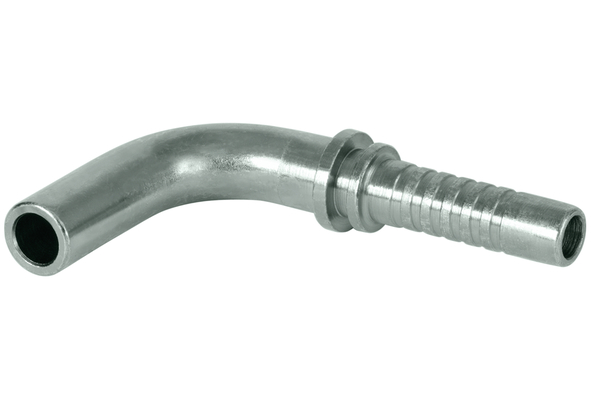

XV16MOSE90S08
BES 90° MOSE 90°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

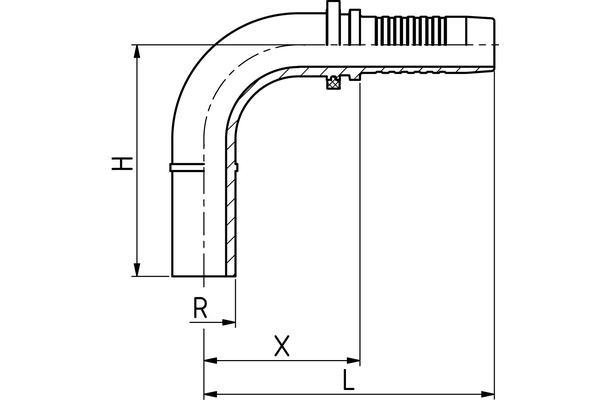

  Pipe Ø R [mm]:	16
  X [mm]:	39,7
  L1 [mm]:	75,0
  H [mm]:	51,0
  Connection name Indunorm:	MOSE 90°
  Connection type:	BES 90° RSS
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
