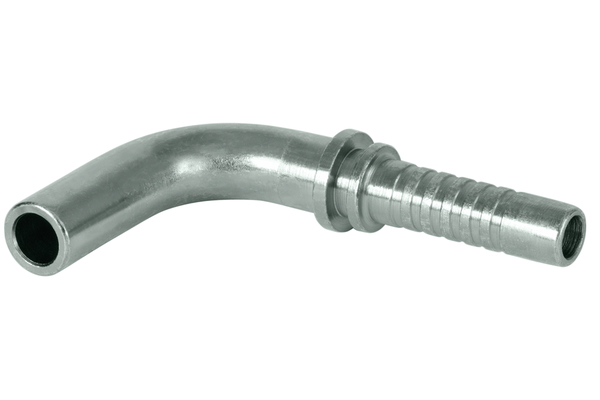

BES/RSS - Pipe socket 90°

Similar image
Similar image

Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

To accessories

Detail

Art. No.
XV12MOSE90S05
%
SALE
XV16MOSE90S08
%
SALE
XV25MOSE90S12
%
SALE
DN
08
12
19
Size
05
08
12
Inch
5/16
1/2
3/4
Thread + standard
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series
Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

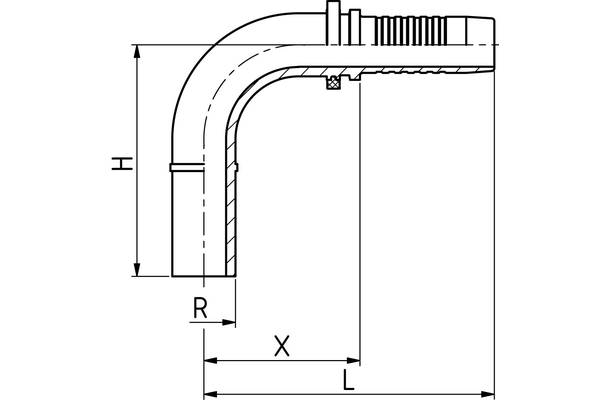

Pipe Ø R [mm]
12
16
25
X [mm]
38,0
39,7
69,5
L1 [mm]
68,0
75,0
115,5
H [mm]
41,5
51,0
77,0
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MOSE 90°
    Connection type: BES 90° RSS
    Construction form: 90°
    Material: Free cutting steel
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
