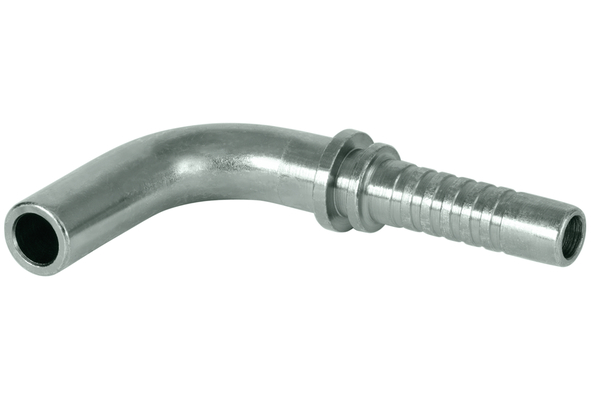

XV25MOSE90S12
BES 90° MOSE 90°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	Pipe socket according to DIN 2353 for cutting ring and union nut, heavy series

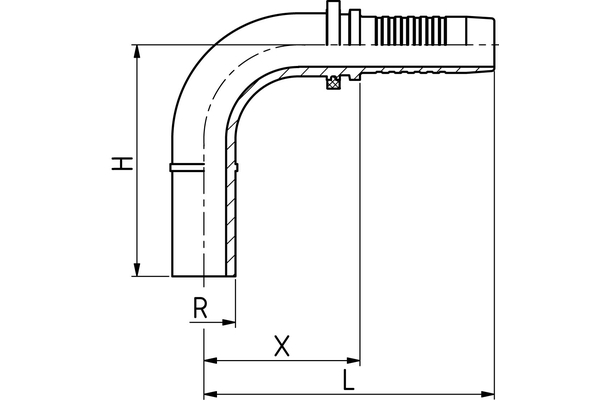

  Pipe Ø R [mm]:	25
  X [mm]:	69,5
  L1 [mm]:	115,5
  H [mm]:	77,0
  Connection name Indunorm:	MOSE 90°
  Connection type:	BES 90° RSS
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
