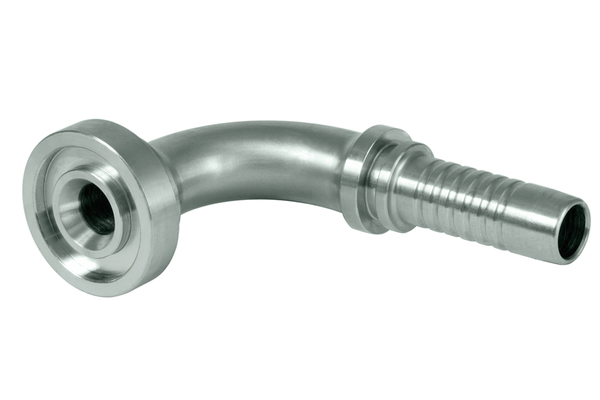

SFL 3000 PSI 90°

Similar image
Similar image

Flange head SAE J518 (ISO 6162-1) high pressure series 3.000 PSI

To accessories

Detail

Art. No.
XV08SFH90S08
%
SALE
XV12SFH90S08
%
SALE
XV12SFH90S10
%
SALE
XV16SFH90S10
%
SALE
XV08SFH90S12
%
SALE
XV12SFH90S12
%
SALE
XV16SFH90S12
%
SALE
XV20SFH90S12
%
SALE
XV12SFH90S16
%
SALE
XV16SFH90S16
%
SALE
XV20SFH90S16
%
SALE
XV24SFH90S16
%
SALE
XV16SFH90S20
%
SALE
XV20SFH90S20
%
SALE
XV24SFH90S20
%
SALE
XV20SFH90S24
%
SALE
XV24SFH90S24
%
SALE
XV32SFH90S24
%
SALE
XV24SFH90S32
%
SALE
XV32SFH90S32
%
SALE
DN
12
12
16
16
19
19
19
19
25
25
25
25
31
31
31
38
38
38
51
51
Size
08
08
10
10
12
12
12
12
16
16
16
16
20
20
20
24
24
24
32
32
Inch
1/2
1/2
5/8
5/8
3/4
3/4
3/4
3/4
1
1
1
1
1.1/4
1.1/4
1.1/4
1.1/2
1.1/2
1.1/2
2
2
working pressure [bar]
206
206
206
206
206
206
206
206
206
206
206
206
206
206
206
206
206
206
206
206
Thread + standard
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
Flange size D2
1/2"
3/4"
3/4"
1"
1/2"
3/4"
1"
1.1/4"
3/4"
1"
1.1/4"
1.1/2"
1"
1.1/4"
1.1/2"
1.1/4"
1.1/2"
2"
1.1/2"
2"
X [mm]
41,2
40,7
49,2
62,5
52,8
53,7
66,0
62,0
64,0
70,0
99,0
73,0
75,5
88,5
93,5
93,0
116,0
103,5
107,5
127,5
L1 [mm]
76,5
76,0
87,5
101,0
98,8
99,5
112,0
108,0
119,0
125,0
154,0
128,0
135,5
148,5
153,5
161,0
178,5
171,0
182,5
202,5
H [mm]
44,5
50,5
55,5
66,0
57,5
55,5
61,5
61,0
59,0
72,0
79,0
69,0
68,0
76,5
87,0
86,0
110,0
98,0
97,0
140,0
D2 [mm]
30,2
38,1
38,1
44,5
30,2
38,1
44,5
50,8
38,1
44,5
50,8
60,3
44,5
50,8
60,3
50,8
60,3
71,4
60,3
71,4
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: SFH 90°
    Connection type: SFL 3000 PSI 90°
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: Zinc-Nickel
    Type of fittings: Universal series XV
