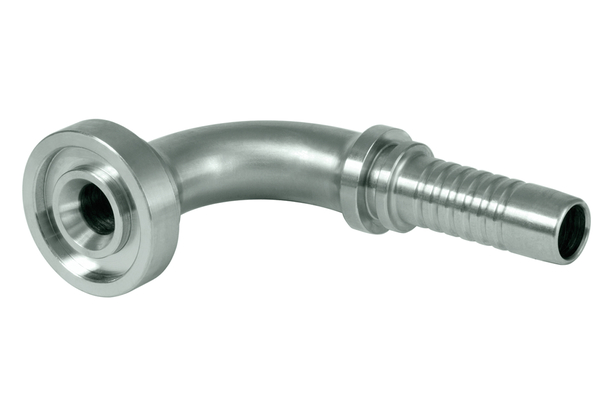

XV24SFH90S32
SFL 3.000 PSI 90° SFH 90°

Product info

• Technical data

  DN:	51
  Size:	32
  Inch:	2
  working pressure [bar]:	206
  Thread + standard:	Flange head SAE J518 (ISO 6162-1) standard series 3000 PSI
  Flange size D2:	1.1/2"

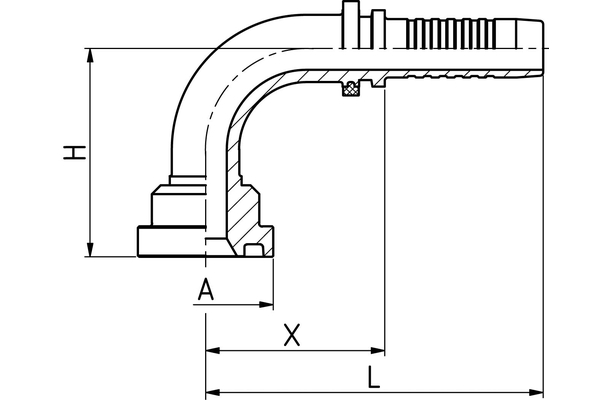

  X [mm]:	107,5
  L1 [mm]:	182,5
  H [mm]:	97,0
  D2 [mm]:	60,3
  Connection name Indunorm:	SFH 90°
  Connection type:	SFL 3000 PSI 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Universal series XV
