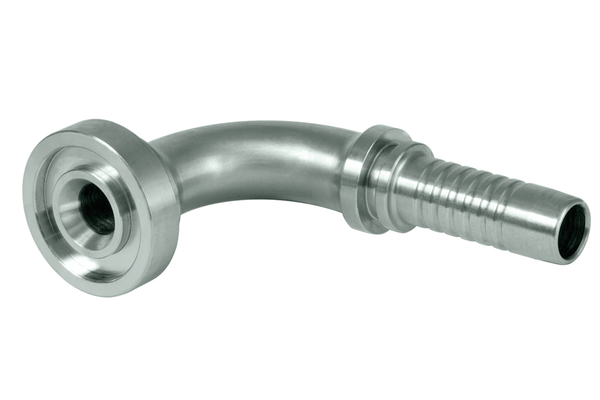

SFS 6000 PSI 90°

Similar image
Similar image

Flange head SAE J518 (ISO 6162-1) high pressure series 6.000 PSI

To accessories

Detail

Art. No.
XV08SFH6-90S08
%
SALE
XV12SFH6-90S08
%
SALE
XV08SFH6-90S10
%
SALE
XV12SFH6-90S10
%
SALE
XV16SFH6-90S10
%
SALE
XV08SFH6-90S12
%
SALE
XV12SFH6-90S12
%
SALE
XV16SFH6-90S12
%
SALE
XV12SFH6-90S16
%
SALE
XV16SFH6-90S16
%
SALE
XV20SFH6-90S16
%
SALE
XV20SFH6-90S20
%
SALE
XV20SFH6-90S24
%
SALE
XV24SFH6-90S24
%
SALE
XV32SFH6-90S32
%
SALE
DN
12
12
16
16
16
19
19
19
25
25
25
31
38
38
51
Size
08
08
10
10
10
12
12
12
16
16
16
20
24
24
32
Inch
1/2
1/2
5/8
5/8
5/8
3/4
3/4
3/4
1
1
1
1.1/4
1.1/2
1.1/2
2
working pressure [bar]
413
413
413
413
413
413
413
413
413
413
413
413
413
413
413
Thread + standard
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
Flange size D2
1/2"
3/4"
1/2"
3/4"
1"
1/2"
3/4"
1"
3/4"
1"
1.1/4"
1.1/4"
1.1/4"
1.1/2"
2"
X [mm]
39,0
43,2
52,0
47,5
54,5
56,0
54,0
61,5
63,0
70,5
81,0
88,5
93,5
100,5
126,0
L1 [mm]
74,5
78,5
90,5
86,0
93,0
102,0
100,0
107,5
118,0
125,5
136,0
148,5
161,0
168,0
201,0
H [mm]
45,0
50,0
52,5
57,0
56,0
51,0
59,0
68,0
20,0
73,0
80,5
84,0
95,0
109,5
137,5
D2 [mm]
31,8
41,3
31,8
41,3
47,6
31,8
41,3
47,6
41,3
47,6
54,0
54,0
54,0
63,5
79,4
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: SFH 6 - 90°
    Connection type: SFS 6000 PSI 90°
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
