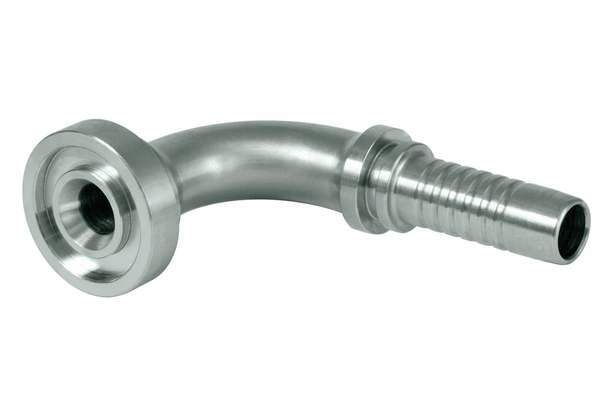

XV08SFH6-90S08
SFS 6.000 PSI 90° SFH 6 - 90°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	413
  Thread + standard:	Flange head SAE J518 (IS 6162-1) high pressure series, 6000 PSI
  Flange size D2:	1/2"

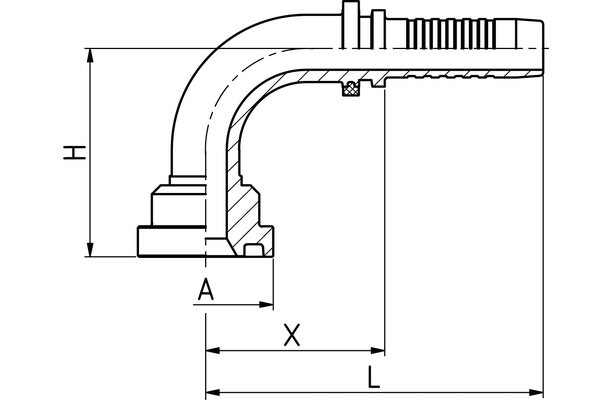

  X [mm]:	39,0
  L1 [mm]:	74,5
  H [mm]:	45,0
  D2 [mm]:	31,8
  Connection name Indunorm:	SFH 6 - 90°
  Connection type:	SFS 6000 PSI 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
