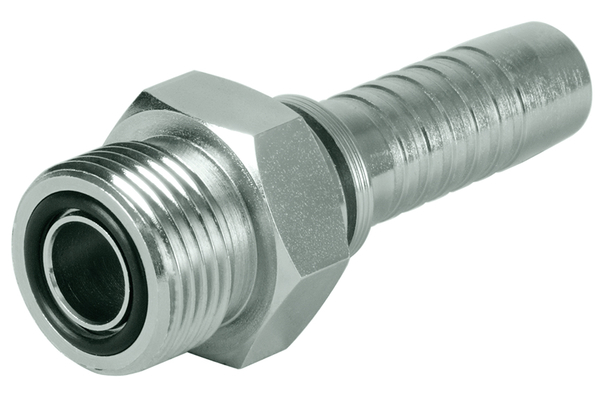

XV10ORM10
ORFS with male thread ORM

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
  Connection thread A:	1"14 UNS

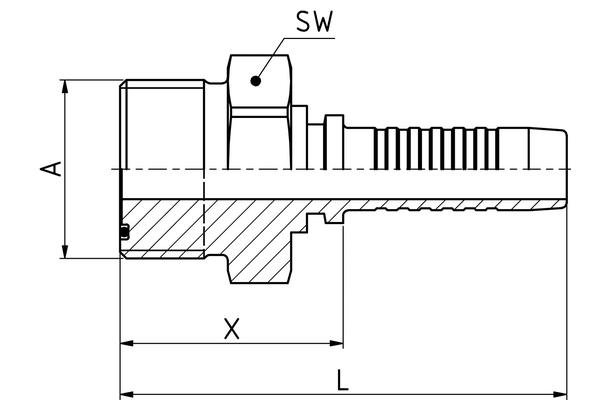

  X [mm]:	35,0
  L1 [mm]:	73,5
  Outer diameter O-ring [mm]:	15,6
  Height O-ring [mm]:	1,78
  SW1 [mm]:	27
  Connection name Indunorm:	ORM
  Connection type:	ORFS with male thread
  Construction form:	0°
  Material:	Free cutting steel
  Material O-Ring:	NBR
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
