ORFS with male thread

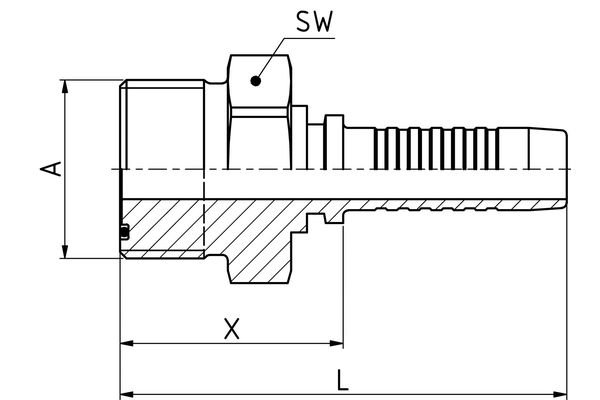

ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread

To accessories

Detail
Product info

Detail

Art. No.

XV04ORM04

XV06ORM04

XV06ORM05

XV06ORM06

XV08ORM06

XV08ORM08

XV10ORM08

XV12ORM08

XV10ORM10

XV12ORM10

XV12ORM12

XV16ORM12

XV16ORM16

XV20ORM20

DN

06

08

10

12

16

19

25

31

Size

04

05

06

08

10

12

16

20

Inch

1/4

5/16

3/8

1/2

5/8

3/4

1

1.1/4

Thread + standard

ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread

Connection thread A

9/16"-18 UNF

11/16"-16 UN

13/16"-16 UN

1"-14 UNS

1"3/16-12 UN

1"14 UNS

1"3/16-12 UN

1"7/16-12 UN

1"11/16-12 UN

X [mm]

24,6

26,8

26,6

30,7

35,2

38,2

35,0

39,2

40,9

41,9

45,3

L1 [mm]

51,0

53,3

60,1

63,2

67,7

70,7

73,5

83,5

85,2

95,6

103,2

Outer diameter O-ring [mm]

7,65

9,25

15,6

Height O-ring [mm]

1,78

Height O-Ring [mm]

1,78

SW1 [mm]

17

19

22

27

32

27

32

41

38

46

Quantity

Standard nominal sizes in bold

Product info

Technical data

Connection name Indunorm:	ORM
Connection type:	ORFS with male thread
Construction form:	0°
Material:	Free cutting steel
Material O-Ring:	NBR
Resistance against red rust [h]:	144
Resistance against white rust [h]:	72
Surface:	galvanised and Cr III passivated
Type of fittings:	Universal series XV
