XV16ORM16
ORFS with male thread ORM

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread

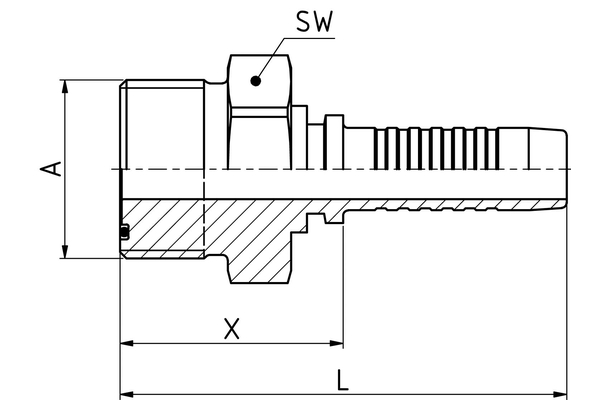

  Connection thread A:	1"7/16-12 UN
  X [mm]:	41,9
  L1 [mm]:	95,6
  SW1 [mm]:	38
  Connection name Indunorm:	ORM
  Connection type:	ORFS with male thread
  Construction form:	0°
  Material:	Free cutting steel
  Material O-Ring:	NBR
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
