XV20ORM20
ORFS with male thread ORM

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
  Connection thread A:	1"11/16-12 UN

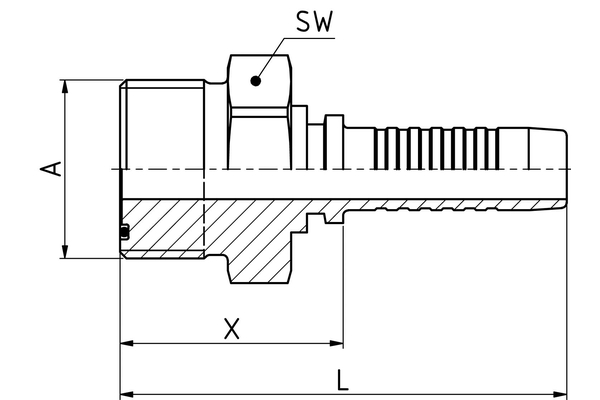

  X [mm]:	45,3
  L1 [mm]:	103,2
  SW1 [mm]:	46
  Connection name Indunorm:	ORM
  Connection type:	ORFS with male thread
  Construction form:	0°
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
