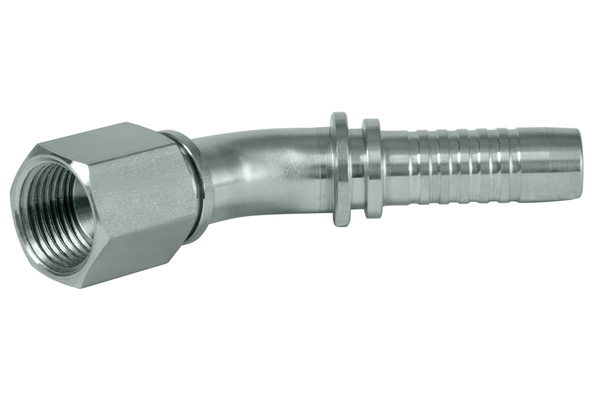

XV12J45S06
DKJ 45° JF 45°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	3/4"-16 UNF

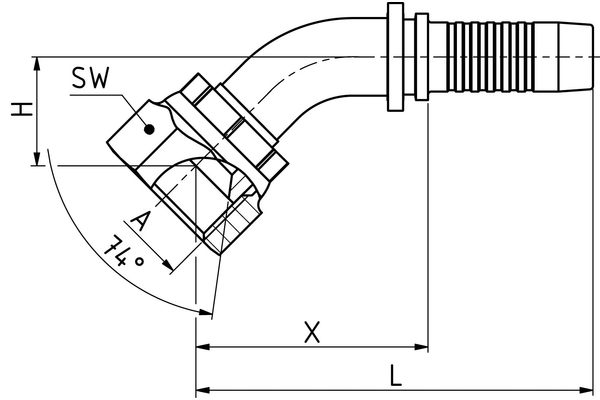

  X [mm]:	36,7
  L1 [mm]:	76,0
  H [mm]:	13,5
  SW1 [mm]:	24
  Type of nut:	CR
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	°45
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
