DKJ 45°

Similar image
Similar image

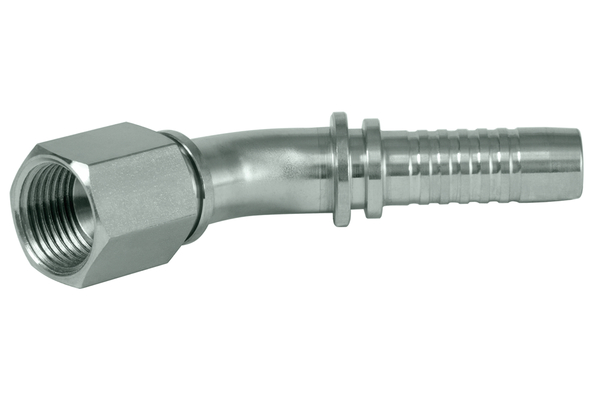

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

To accessories

Detail

Art. No.
XV07J45S04
%
SALE
XV08J45S04
%
SALE
XV09J45S04
%
SALE
XV08J45S05
%
SALE
XV09J45S05
%
SALE
XV08J45S06
%
SALE
XV09J45S06
%
SALE
XV12J45S06
%
SALE
XV12J45S08
%
SALE
XV14J45S08
%
SALE
XV14J45S10
%
SALE
XV17J45S10
%
SALE
XV17J45S12
%
SALE
XV19J45S12
%
SALE
XV21J45S12
%
SALE
XV19J45S16
%
SALE
XV21J45S16
%
SALE
XV26J45S16
%
SALE
XV26J45S20
%
SALE
DN
06
06
06
08
08
10
10
10
12
12
16
16
19
19
19
25
25
25
31
Size
04
04
04
05
05
06
06
06
08
08
10
10
12
12
12
16
16
16
20
Inch
1/4
1/4
1/4
5/16
5/16
3/8
3/8
3/8
1/2
1/2
5/8
5/8
3/4
3/4
3/4
1
1
1
1.1/4
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
Connection thread A
7/16"-20 UNF
1/2"-20 UNF
9/16"-18 UNF
1/2"-20 UNF
9/16"-18 UNF
1/2"-20 UNF
9/16"-18 UNF
3/4"-16 UNF
3/4"-16 UNF
7/8"-14 UNF
7/8"-14 UNF
1.1/16"-12 UN
1.1/16"-12 UN
1.3/16"-12 UN
1.5/16"-12 UN
1.3/16"-12 UN
1.5/16"-12 UN
1.5/8"-12 UN
1.5/8"-12 UN

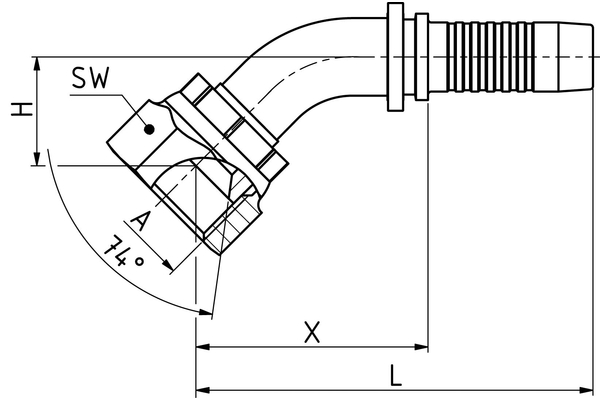

X [mm]
39,0
39,0
40,0
55,5
52,0
43,5
41,7
36,7
62,0
45,0
54,7
53,7
81,0
75,6
84,0
70,5
111,0
90,0
132,0
L1 [mm]
65,5
65,5
66,5
82,0
78,5
77,0
75,0
76,0
94,5
96,5
93,0
92,0
125,3
114,9
128,3
125,7
165,3
144,5
189,9
H [mm]
14,0
13,0
15,0
14,5
16,0
18,2
21,5
13,5
19,0
21,0
27,5
22,5
25,0
31,9
28,0
32,6
31,0
35,0
35,0
SW1 [mm]
15
17
19
17
19
17
19
24
24
27
27
32
32
36
41
36
41
50
50
Type of nut
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
CR
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF 45°
    Connection type: DKJ 45°
    Construction form: °45
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
