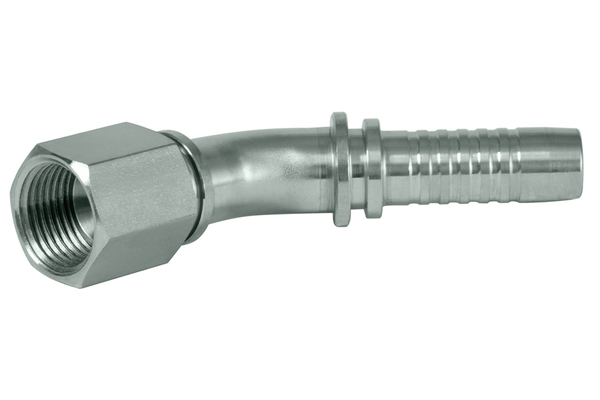

XV26J45S16
DKJ 45° JF 45°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	1.5/8"-12 UN

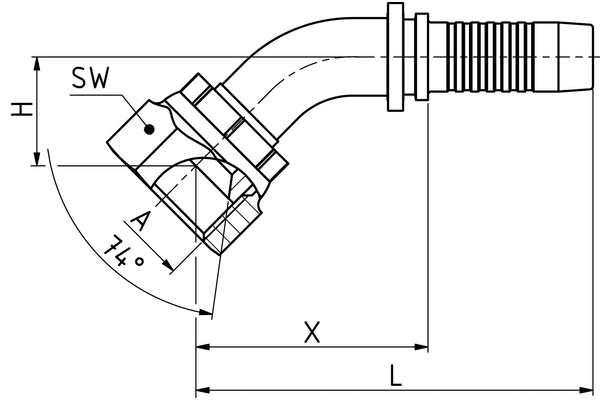

  X [mm]:	90,0
  L1 [mm]:	144,5
  H [mm]:	35,0
  SW1 [mm]:	50
  Type of nut:	CR
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	°45
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
