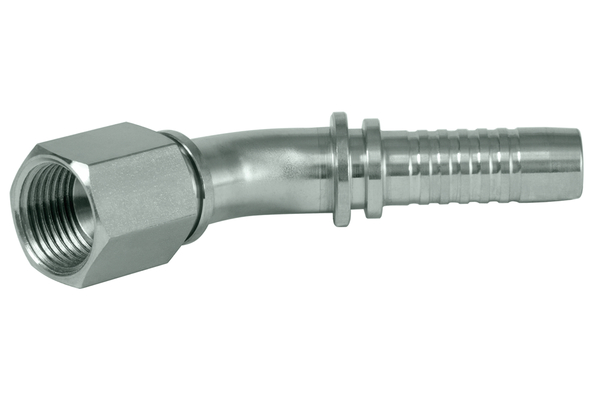

XV19J45S12
DKJ 45° JF 45°

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	1.3/16"-12 UN

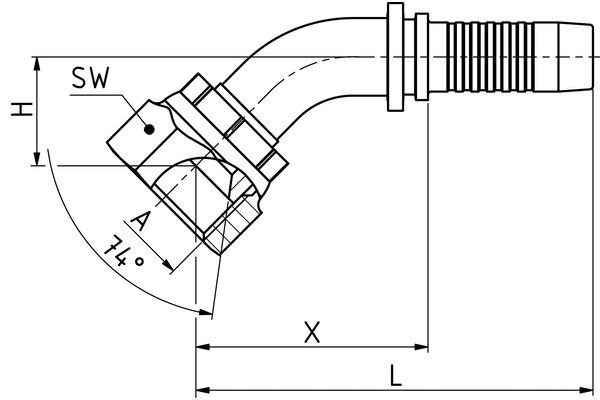

  X [mm]:	75,6
  L1 [mm]:	114,9
  H [mm]:	31,9
  SW1 [mm]:	36
  Type of nut:	CR
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	°45
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
