XV06LORF45S06
ORFS 45° with union nut LORF 45°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread

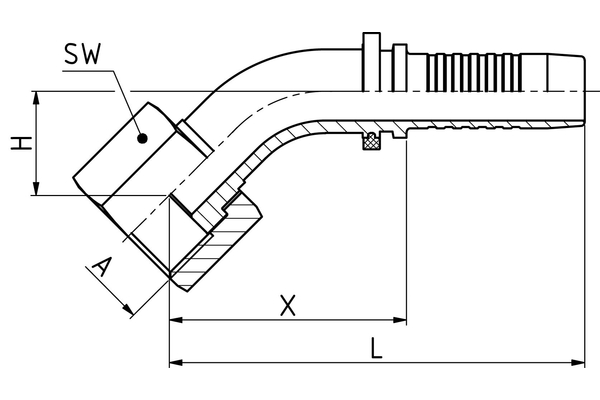

  Connection thread A:	11/16"-16 UN
  X [mm]:	43,2
  L1 [mm]:	76,7
  H [mm]:	17,9
  SW1 [mm]:	22
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS 45° with union nut
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
