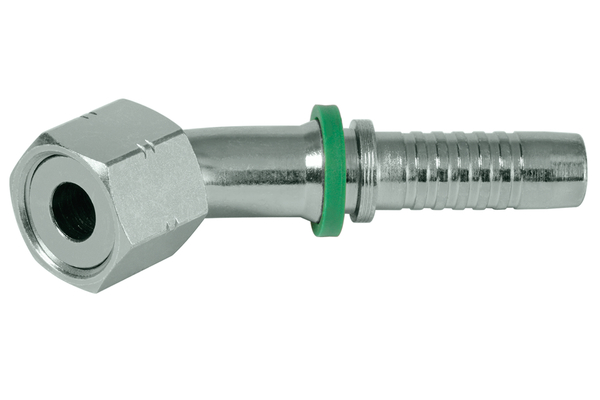

ORFS 45° with swivel nut

Similar image
Similar image

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
XV04LORF45S04
%
SALE
XV06LORF45S04
%
SALE
XV06LORF45S05
%
SALE
XV06LORF45S06
%
SALE
XV08LORF45S06
%
SALE
XV08LORF45S08
%
SALE
XV10LORF45S08
%
SALE
XV12LORF45S08
%
SALE
XV10LORF45S10
%
SALE
XV12LORF45S10
%
SALE
XV12LORF45S12
%
SALE
XV16LORF45S12
%
SALE
XV16LORF45S16
%
SALE
XV20LORF45S20
%
SALE
XV24LORF45S24
%
SALE
DN
06
06
08
10
10
12
12
12
16
16
19
19
25
31
38
Size
04
04
05
06
06
08
08
08
10
10
12
12
16
20
24
Inch
1/4
1/4
5/16
3/8
3/8
1/2
1/2
1/2
5/8
5/8
3/4
3/4
1
1.1/4
1.1/2
Thread + standard
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
Connection thread A
9/16"-18 UNF
11/16"-16 UN
11/16"-16 UN
11/16"-16 UN
13/16"-16 UN
13/16"-16 UN
1"-14 UNS
1"3/16-12 UN
1"-14 UNS
1"3/16-12 UN
1"3/16-12 UN
1"7/16-12 UN
1"7/16-12 UN
1"11/16-12 UN
2"-12 UN
X [mm]
34,5
36,0
52,0
43,2
44,5
61,0
64,0
66,0
52,5
55,2
78,0
82,0
89,0
129,0
79,8
L1 [mm]
64,5
66,0
78,5
76,7
78,0
93,5
96,5
98,5
91,0
93,5
122,3
126,3
144,0
182,9
147,5
H [mm]
14,0
16,0
13,0
17,9
19,3
17,0
20,0
22,0
23,3
22,5
21,0
26,0
37,5
32,0
32,6
SW1 [mm]
19
22
22
22
24
24
30
36
30
36
36
41
41
50
60
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: LORF 45°
    Connection type: ORFS 45° with union nut
    Construction form: 45°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
