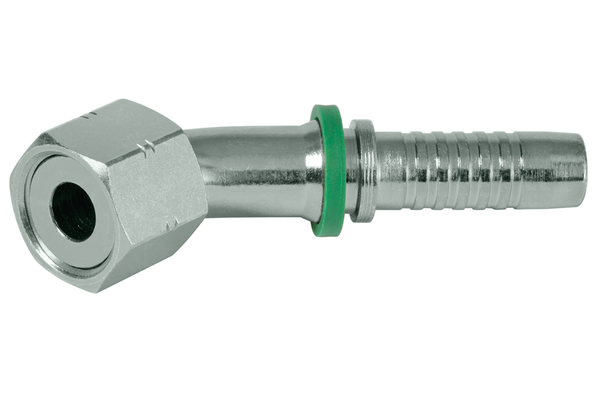

XV10LORF45S08
ORFS 45° with union nut LORF 45°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  Connection thread A:	1"-14 UNS

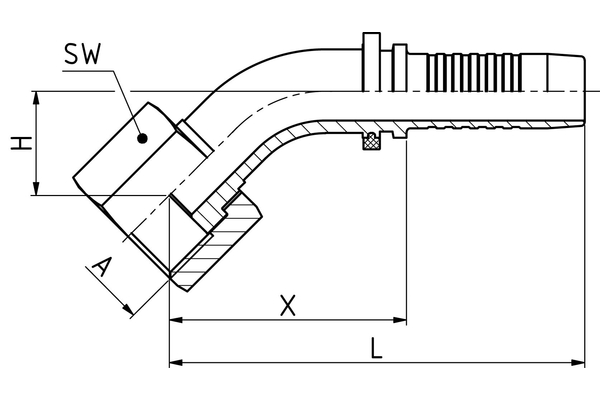

  X [mm]:	64,0
  L1 [mm]:	96,5
  H [mm]:	20,0
  SW1 [mm]:	30
  Connection name Indunorm:	LORF 45°
  Connection type:	ORFS 45° with union nut
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
