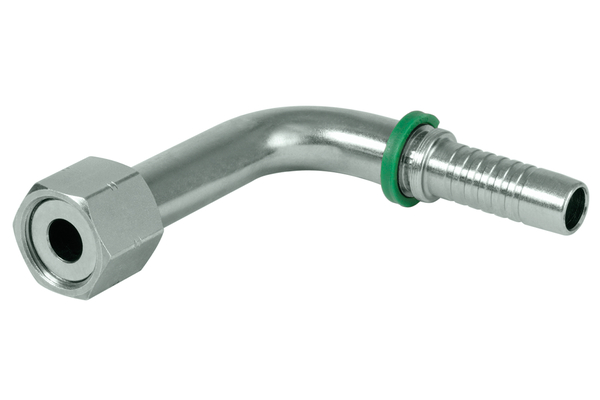

ORFS 90° with extended axle stub length and swivel nut

Similar image
Similar image

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
XV04LORF90SL04
%
SALE
XV06LORF90SL06
%
SALE
XV08LORF90SL08
%
SALE
XV10LORF90SL10
%
SALE
XV12LORF90SL12
%
SALE
XV16LORF90SL16
%
SALE
XV20LORF90SL20
%
SALE
XV24LORF90SL24
%
SALE
DN
06
10
12
16
19
25
31
38
Size
04
06
08
10
12
16
20
24
Inch
1/4
3/8
1/2
5/8
3/4
1
1.1/4
1.1/2
Thread + standard
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
Connection thread A
9/16"-18 UNF
11/16"-16 UN
13/16"-16 UN
1"-14 UNS
1.3/16"-12 UN
1.7/16"-12 UN
1.11/16"-16 UN
2"-12 UN
X [mm]
32,8
37,0
38,5
45,0
52,8
61,4
76,3
82,3
L1 [mm]
63,0
70,5
74,0
83,5
98,8
116,6
136,3
150,0
H [mm]
58,0
69,0
82,0
94,0
96,0
114,0
129,0
146,0
SW1 [mm]
17
22
24
30
36
41
50
60
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: LORF-90-SL
    Connection type: ORFS 90° with extended axle stub length and union nut
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: Universal series XV
