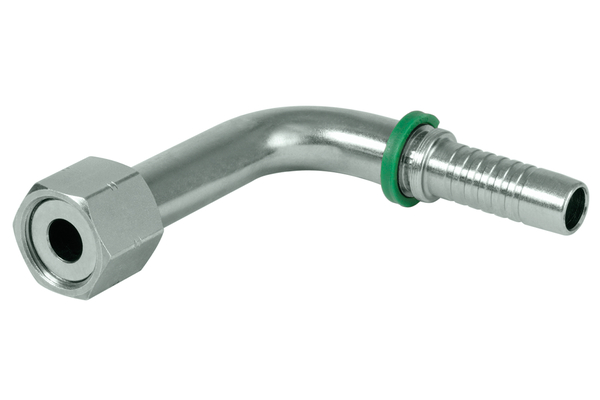

XV20LORF90SL20
ORFS 90° with extended axle stub length and union nut LORF 90°

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  Connection thread A:	1.11/16"-16 UN

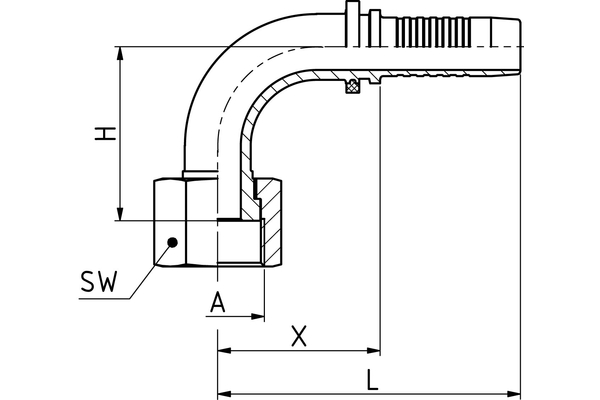

  X [mm]:	76,3
  L1 [mm]:	136,3
  H [mm]:	129,0
  SW1 [mm]:	50
  Connection name Indunorm:	LORF-90-SL
  Connection type:	ORFS 90° with extended axle stub length and union nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
