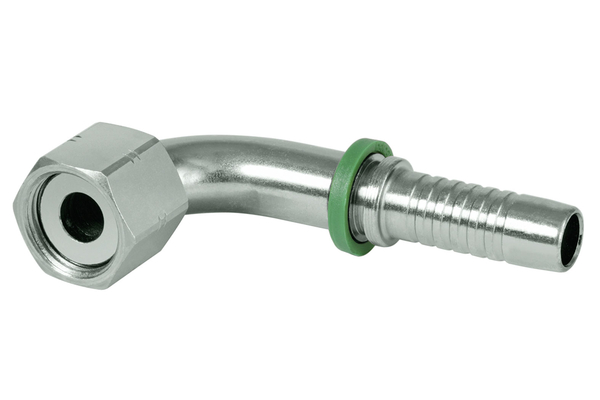

ORFS 90° with swivel nut

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

To accessories

Detail
Product info

Detail

Art. No.

XV04LORF90S04

XV06LORF90S04

XV06LORF90S05

XV06LORF90S06

XV08LORF90S06

XV08LORF90S08

XV10LORF90S08

XV12LORF90S08

XV10LORF90S10

XV12LORF90S10

XV12LORF90S12

XV16LORF90S12

XV16LORF90S16

XV20LORF90S20

XV24LORF90S24

DN

06

08

10

12

16

19

25

31

38

Size

04

05

06

08

10

12

16

20

24

Inch

1/4

5/16

3/8

1/2

5/8

3/4

1

1.1/4

1.1/2

Thread + standard

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

Connection thread A

9/16"-18 UNF

11/16"-16 UN

13/16"-16 UN

1"-14 UNS

1"3/16-12 UN

1"-14 UNS

1"3/16-12 UN

1"7/16-12 UN

1"11/16-12 UN

2"-12 UN

X [mm]

33,0

32,8

36,0

37,0

40,0

45,0

46

52,0

72,0

88,0

82,3

L1 [mm]

59,5

58,0

62,5

70,5

72,5

83,5

86,0

106,0

96,3

126,3

145,9

150,0

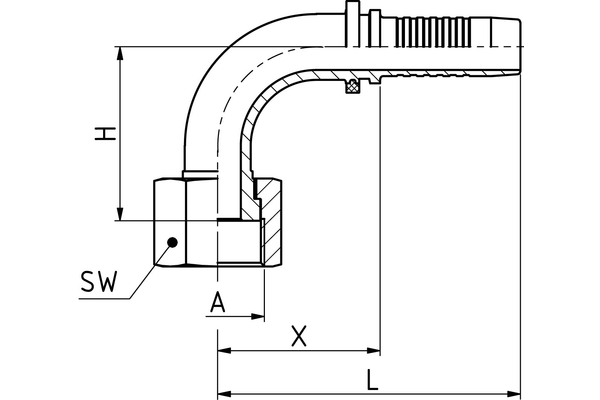

H [mm]

24,0

25,0

27,0

37,0

33,5

36,0

41,0

43,0

48,8

46,0

52,0

63,0

73,0

81,3

H [mm]

46

SW1 [mm]

17

22

24

30

36

30

36

41

50

60

Quantity

Standard nominal sizes in bold

Product info

Technical data

Connection name Indunorm:	LORF 90°
Connection type:	ORFS 90° with union nut
Construction form:	90°
Material:	Free cutting steel
Resistance against red rust [h]:	144
Resistance against white rust [h]:	72
Surface:	galvanised and Cr III passivated
Type of fittings:	Universal series XV
