XV04LORF90S04

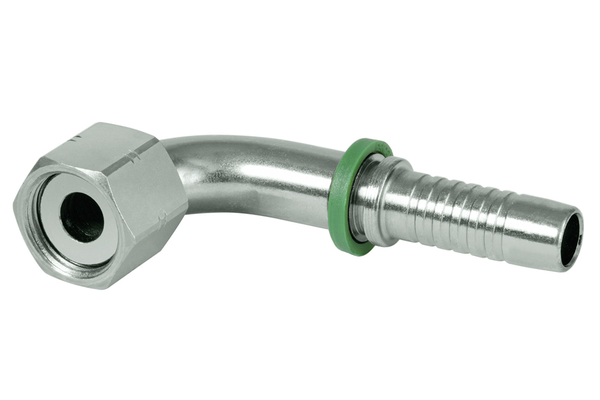

ORFS 90° with union nut LORF 90°

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  Connection thread A:	9/16"-18 UNF
  X [mm]:	33,0
  L1 [mm]:	59,5
  H [mm]:	24,0
  SW1 [mm]:	17
  Connection name Indunorm:	LORF 90°
  Connection type:	ORFS 90° with union nut
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
