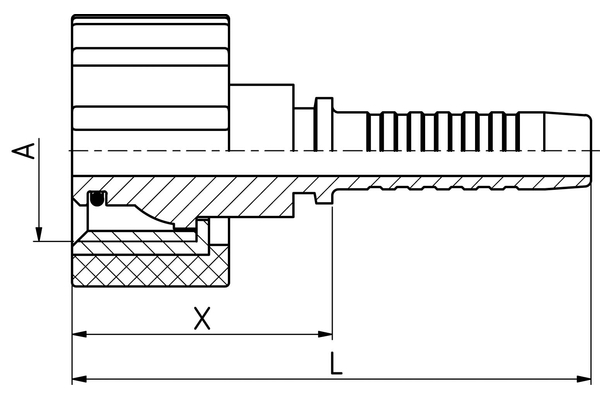

XV22HWN06LM
HWN HWN-LM

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Washing device connection with union nut, long version
  Connection thread A:	M22x1,5
  X [mm]:	28,7
  L1 [mm]:	62,2
  Connection name Indunorm:	HWN-LM
  Connection type:	HWN
  Construction form:	0°
  Material:	Free cutting steel
  Material O-Ring:	NBR 70
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	Cr3
  Type of fittings:	Universal series XV
