VC02NM04

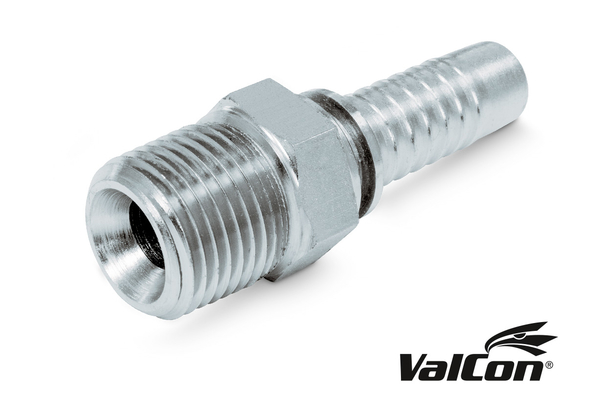

Valcon® swage fitting AGN NM

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	Threaded adapter with conical NPTF thread
  L1 [mm]:	47,0
  d [mm]:	4,0
  T:	1/8-27
  E [mm]:	12
  C [mm]:	22,0
  L [mm]:	47,0
  Connection name Indunorm:	NM
  Connection type:	AGN
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
