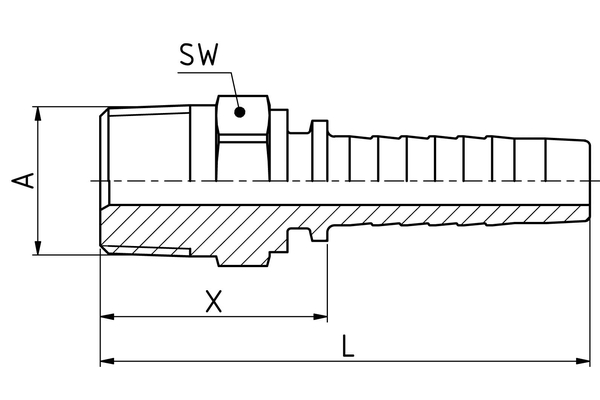

VC12NM10
Valcon® swage fitting AGN NM

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	Threaded adapter with conical NPTF thread
  L1 [mm]:	70,5
  d [mm]:	12,0
  T:	3/4-14
  E [mm]:	27
  C [mm]:	33,0
  L [mm]:	70,5
  Connection name Indunorm:	NM
  Connection type:	AGN
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
