VC06BM05

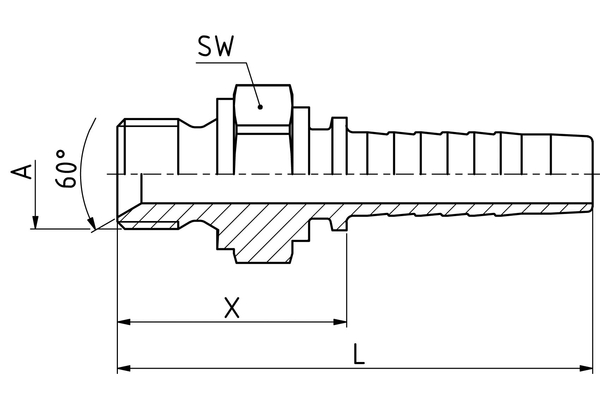

Valcon® swage fitting AGR BM

Product info

• Technical data

  DN:	8
  Size:	05
  Inch:	5/16"
  Thread + standard:	BSP-threaded adapter, 60°-cone with BSP male thread
  L1 [mm]:	55,5
  d [mm]:	5,5
  T:	3/8-19
  E [mm]:	22
  C [mm]:	28,0
  L [mm]:	55,5
  Connection name Indunorm:	BM
  Connection type:	AGR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
