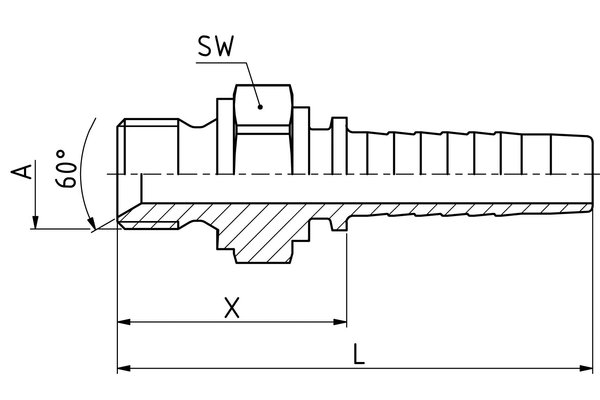

VC10BM10
Valcon® swage fitting AGR BM

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	BSP-threaded adapter, 60°-cone with BSP male thread
  L1 [mm]:	68,5
  d [mm]:	12,0
  T:	5/8-14
  E [mm]:	30
  C [mm]:	34,0
  L [mm]:	68,5
  Connection name Indunorm:	BM
  Connection type:	AGR
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
