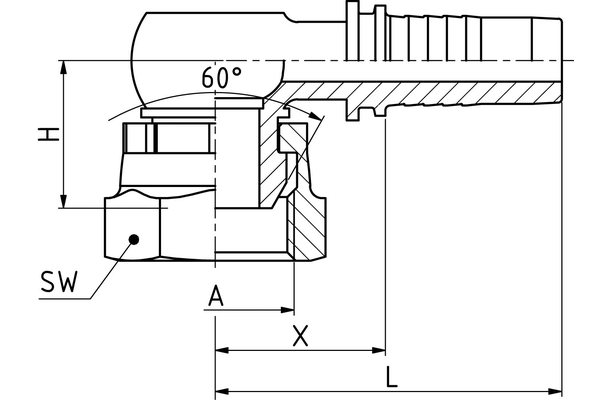

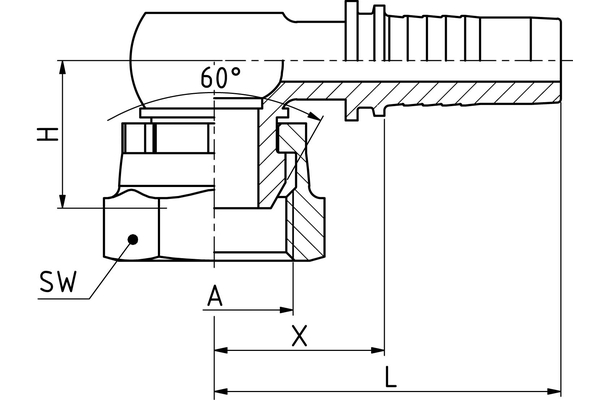

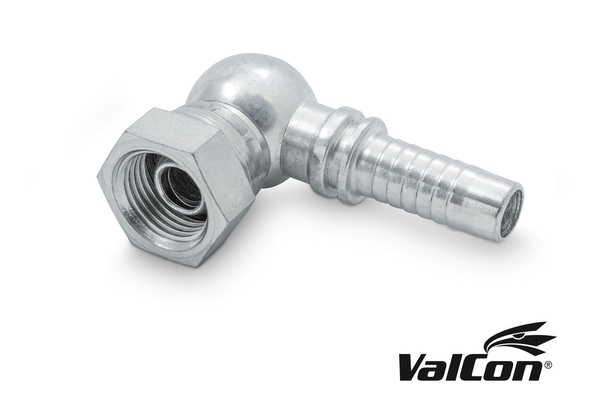

ValCon® DKR 90° compact

Similar image
Similar image

BSP sealing head, 60 ° cone with union nut, BSP thread

To accessories

Detail

Art. No.
VC04B90K04
%
SALE
VC06B90K06
%
SALE
VC08B90K08
%
SALE
VC12B90K12
%
SALE
DN
6
10
12
19
Size
04
06
08
12
Inch
1/4"
3/8"
1/2"
3/4"
Thread + standard
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
BSP sealing head, 60 ° cone with union nut, BSP thread
H [mm]
21,0
27,5
27,0
29,0
d [mm]
4,0
7,0
9,5
15,0
T
1/4-19
3/8-19
1/2-14
3/4-14
E [mm]
19
22
27
32
C [mm]
25,0
28,0
27,0
31,0
L [mm]
53,0
60,5
58,5
80,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BF 90°
    Connection type: DKR 90° compact
    Construction form: 90°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
